SMART ATM
The all-in-one Micro ATM payment solution alternative to credit cards
A COMPLIANT PAYMENT ACCEPTANCE SERVICE WITH A POS TERMINAL.
BLUE SAGE MICRO ATM IS A (MTRC) PAYMENT CARD ACCEPTANCE TERMINAL.
OUR MICRO ATM SOLUTION INTEGRATES WITH AML / BSA COMPLIANT SERVICE PROVIDERS AND BANKS WHO ENSURE YOUR TRANSACTIONS ARE COMPLIANT AND DEPOSITED WITHOUT WORRY, FRAUD OR RISK.
THE BLUE SAGE MICRO ATM SOLUTION ALSO SUPPORT QR, CRYPTO, MOBILE WALLET, GIFT CARD AND LOYALTY PAYMENT METHODS.
BLUE SAGE WORKS WITH ANY MTRC SOFTWARE, PROVIDING OUR CLIENTS FLEXIBILITY TO CHOOSE SOFTWARE VENDORS AND/OR INTEGRATE OUR SUITE OF PRODUCTS AND SERVICES.
V2 - Smart Payment Terminal
ONLINE PORTAL
The online portal provides the fastest, most secure and truly cost-effective remote device management tool for a wide range of users. Portal is accessible from any type of device and can be viewed anytime, anywhere. Portal provides real-time visibility to device management & daily and monthly reporting. Features a user-friendly interface, portal & will assist in streamlining operations and customer support.
5.5 Touch Screen
Larger HD screen with the high contrast ratio and wide visible angle makes merchants and customers always clearly see the screen in various environments.
Hand Held or Countertop
Omni-channel acceptance (swipe, chip, contactless, eWallet, pre-paid, barcode and biometrics) and high-speed printing
V2 Tech Specifications

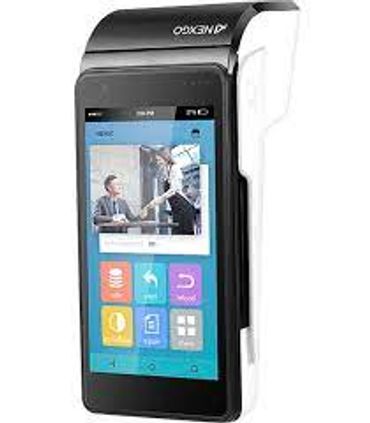

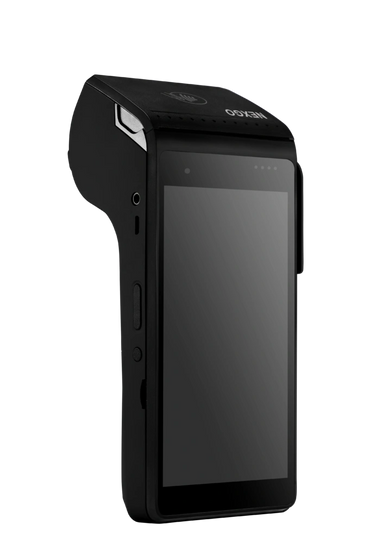

Nexgo Smart Payment Solution - N5
AN INNOVATIVE MOBILE SOLUTION
NEXGO’s N5 tablet is a sleek and secure Android-based payment solution. With many connectivity options, the N5 allows for multiple payment types including NFC, EMV, PIN-based transactions, and signature capture. It also features a rear-facing camera / barcode scanner.
SECURE
Unparalleled security and compliance, including EMV, PCI PTS, PCI PADSS and P2PE
OPTIMIZED
Large screen allows for multi-media use, including video demonstrations and ads, while a thermal printer tucked behind the screen maximizes screen functionality
ADAPTABLE
Designed to stand alone or work with your existing POS solution, the N5 also features a dual CPU allowing you to run customer-facing content while maintaining a secure CPU for payments
Optional Accessories
SCREEN COVER
Tempered glass screen protector offers scratch and drop protection up to 5 feet.
SILICON CASE
Tight-fitting case provides a more secure
grip and added protection.
HOLSTER
Equipped with a belt clip and adjustable shoulder strap to safeguard from elements and secure the terminal comfortably on the user.
CELLULAR PLAN
A SIM card option for the device to communicate over 4G/L TE via T-Mobile or AT&T. (Included)
N5 Tech Specifications
Processor
Processor
Processor
4 Core CPU + ARM Cortex-M4
Memory
Processor
Processor
8 GB Flash
1 GB RAM
Slots
Processor
Card Readers
2 PSAM card slots
1 SIM card slot
1 SD card slot
Card Readers
Card Readers
Card Readers
Contactless – ISO/IEC 14443
Magstripe – 3 track, bi-directional
Smart card – ISO 7816
Display
Card Readers
Display
5.5 inch color capacitive screen
720 x 1280
Audio
Card Readers
Display
Mono, Stereo
Thermal Printer
Camera GPS Tracking
Camera GPS Tracking
Paper roll W x D = 58mm x 40mm
Camera GPS Tracking
Camera GPS Tracking
Camera GPS Tracking
5MP (rear-facing)
GPS, GLONASS
Size Weight
Camera GPS Tracking
Power Supply
L x W x H = 186 x 82 x 64mm
417g
Power Supply
Power Supply
Power Supply
Input: 100-240V, 50-60Hz
Output: 5V/2A
Battery
Power Supply
Battery
Li-ion 4300mAh
Optional
Power Supply
Battery
5MP camera (front-facing)
1D barcode scanner
Docking station (charger/WiFi hotspot)
Get Started Today
